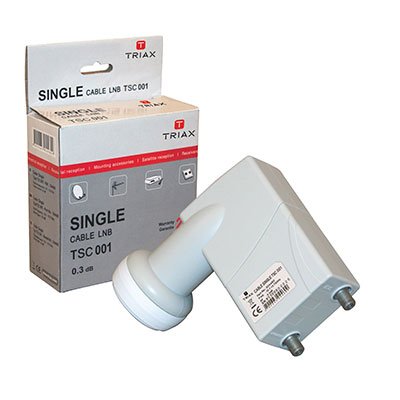

Jednostruki Triax konverter za satelitski signal.
KARAKTERISTIKE
Phase noise @ room temperature - 1 kHz - 50 dBc/Hz
Phase noise @ room temperature - 10 kHz - 75 dBc/Hz
Phase noise @ room temperature - 100 kHz - 95 dBc/Hz
Spurious level - 60 (max.) dBm
Image rejection (min.) 40 dB
Feedhorn F/D @ 11.7 0.615
Feedhorn diameter Ø 40 mm
Frequency stability (-40 ~ +60 °C) ± 2.1:1 MHz
LNB type Single
Switching low band 0.0 kHz
Switching high band 22 (± 4) kHz
FREQUENCY
Input frequency low band 10.7 - 11.7 GHz
Input frequency high band 11.7 - 12.75 GHz
Output frequency low band 950 - 1950 MHz
Output frequency high band 1100 - 2150 MHz
L.O. frequency low band 9.75 GHz
L.O. frequency high band 10.6 GHz
GAIN
Gain flatness (across 26 MHz segm) ± 1.0 (typ.) dB
Gain variation (over operating band) 5 p-p (typ.)
Conversion gain (max.) 62 dB
Conversion gain (min. at room temperature) 50 dB
Conversion gain (typ.) < 62 dB
Noise figure max. 0.3 dB
ISOLATION
Cross polarization isolation 25 typ. dB
OPERATIONAL
DC Current consumption 100 mA
Operating voltage vertical 10.5 ~ 14.5 V/DC
Operating voltage horizontal 15.5 ~ 21.0 V/DC
Operating temperature range -40 ~ +60 °C
CONNECTORS
Connector Type F-female
MECHANICAL
Max. depth incl. feedhorn 135 mm
Product Height 137 mm
Product Depth 97 mm
Product Width 40 mm
Colour RAL 7035
Packing QTY 50
Packaging Height 0,062 m
Packaging Width 0,062 m
Packaging Depth 0,120 m
Net Weight 0,112 kg
Tara Weight 0,026 kg
Total Weight 0,138 kg
